Fitting with Static spectrum (Model: theoretical spectrum)¶
Objective¶
Fitting with voigt broadened theoretical spectrum
Save and Load fitting result

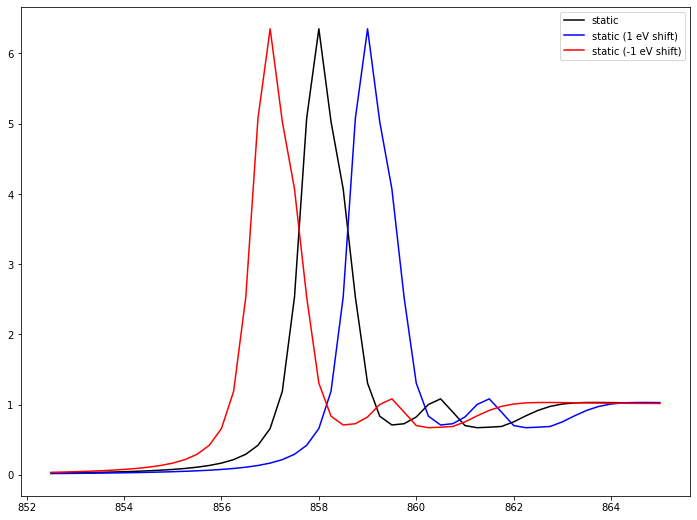

Retrieve or interpolate experimental spectrum based on fitting result and calculates its derivative up to 2.
# import needed module
import numpy as np
import matplotlib.pyplot as plt
import TRXASprefitpack
from TRXASprefitpack import voigt_thy, edge_gaussian
plt.rcParams["figure.figsize"] = (12,9)
Version information¶
print(TRXASprefitpack.__version__)
0.6.1
# Generates fake experiment data
# Model: sum of 2 normalized theoretical spectrum
edge_type = 'g'
e0_edge = np.array([860.5, 862])
fwhm_edge = np.array([1, 1.5])
peak_shift = np.array([862.5, 863])
mixing = np.array([0.3, 0.7])
mixing_edge = np.array([0.3, 0.7])
fwhm_G_thy = 0.3
fwhm_L_thy = 0.5
thy_peak = np.empty(2, dtype=object)
thy_peak[0] = np.genfromtxt('Ni_example_1.stk')
thy_peak[1] = np.genfromtxt('Ni_example_2.stk')
# set scan range
e = np.linspace(852.5, 865, 51)
# generate model spectrum
model_static = mixing[0]*voigt_thy(e, thy_peak[0], fwhm_G_thy, fwhm_L_thy,
peak_shift[0], policy='shift')+\
mixing[1]*voigt_thy(e, thy_peak[1], fwhm_G_thy, fwhm_L_thy,
peak_shift[1], policy='shift')+\
mixing_edge[0]*edge_gaussian(e-e0_edge[0], fwhm_edge[0])+\
mixing_edge[1]*edge_gaussian(e-e0_edge[1], fwhm_edge[1])
# set noise level
eps = 1/100
# generate random noise
noise_static = np.random.normal(0, eps, model_static.size)
# generate measured static spectrum
obs_static = model_static + noise_static
eps_static = eps*np.ones_like(model_static)

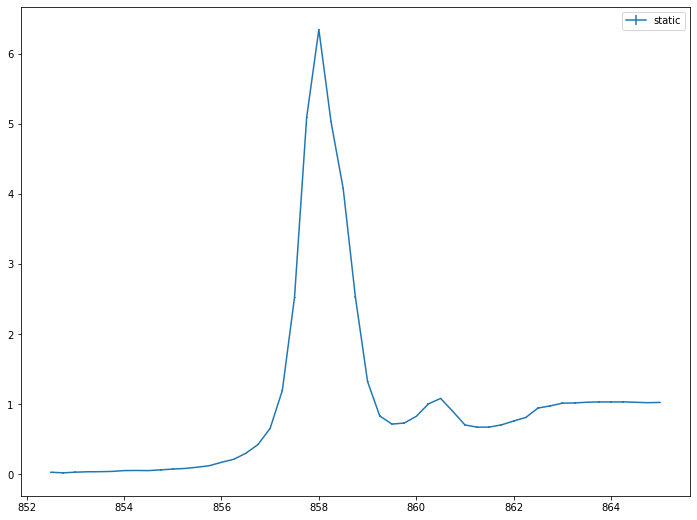

# plot model experimental data
plt.errorbar(e, obs_static, eps_static, label='static')
plt.legend()
plt.show()
Before fitting, we need to guess about initial peak shift paramter for theoretical spectrum

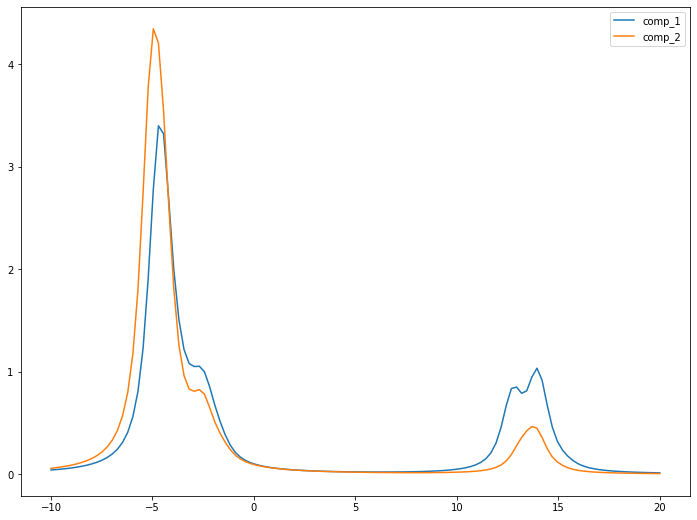

# Guess initial peak_shift
# check with arbitary fwhm paramter and peak_shift paramter
e_tst = np.linspace(-10, 20, 120)
comp_1 = voigt_thy(e_tst, thy_peak[0], 0.5, 1, 0, policy='shift')
comp_2 = voigt_thy(e_tst, thy_peak[1], 0.5, 1, 0, policy='shift')
plt.plot(e_tst, comp_1, label='comp_1')
plt.plot(e_tst, comp_2, label='comp_2')
plt.legend()
plt.show()
Compare first peak position, we can set initial peak shift paramter for both component as \(863\), \(863\). First try with only one component
from TRXASprefitpack import fit_static_thy
# initial guess
policy = 'shift'
peak_shift_init = np.array([863])
fwhm_G_thy_init = 0.5
fwhm_L_thy_init = 0.5
result_1 = fit_static_thy(thy_peak[:1], fwhm_G_thy_init, fwhm_L_thy_init, policy, peak_shift_init, do_glb=True,
e=e, intensity=obs_static, eps=eps_static)
print(result_1)
[Model information]
model : thy
policy: shift
[Optimization Method]
global: basinhopping
leastsq: trf
[Optimization Status]
nfev: 1596
status: 0
global_opt msg: requested number of basinhopping iterations completed successfully
leastsq_opt msg: `xtol` termination condition is satisfied.
[Optimization Results]
Data points: 51
Number of effective parameters: 4
Degree of Freedom: 47
Chi squared: 137613.5102
Reduced chi squared: 2927.947
AIC (Akaike Information Criterion statistic): 410.9193
BIC (Bayesian Information Criterion statistic): 418.6466
[Parameters]
fwhm_G: 0.52544619 +/- 0.31400904 ( 59.76%)
fwhm_L: 0.54033663 +/- 0.23813406 ( 44.07%)
peak_shift 1: 862.66542093 +/- 0.03396275 ( 0.00%)
[Parameter Bound]
fwhm_G: 0.25 <= 0.52544619 <= 1
fwhm_L: 0.25 <= 0.54033663 <= 1
peak_shift 1: 862.59060102 <= 862.66542093 <= 863.40939898
[Component Contribution]
Static spectrum
thy 1: 100.00%
[Parameter Correlation]
Parameter Correlations > 0.1 are reported.
(fwhm_L, fwhm_G) = -0.919

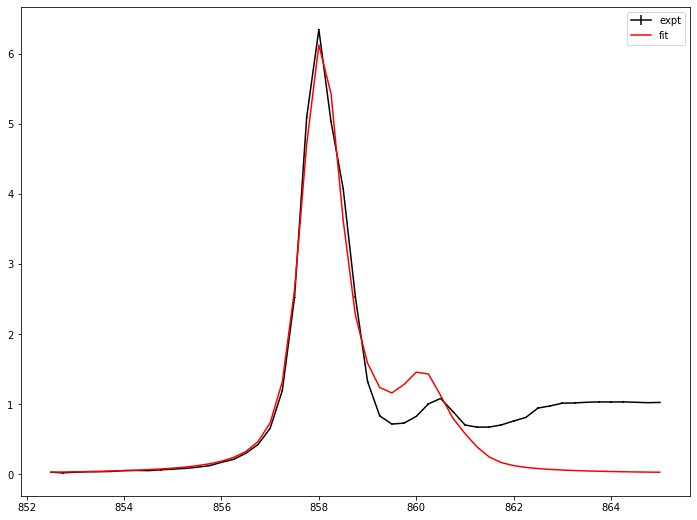

Using static_spectrum function in TRXASprefitpack, you can directly evaluates fitted static spectrum from fitting result
# plot fitting result and experimental data
from TRXASprefitpack import static_spectrum
plt.errorbar(e, obs_static, eps_static, label=f'expt', color='black')
plt.errorbar(e, static_spectrum(e, result_1), label=f'fit', color='red')
plt.legend()
plt.show()
The fit looks not good, there may exists one more component.
# initial guess
# add one more thoeretical spectrum
policy = 'shift'
peak_shift_init = np.array([863, 863])
# Note that each thoeretical spectrum shares full width at half maximum paramter
fwhm_G_thy_init = 0.5
fwhm_L_thy_init = 0.5
result_2 = fit_static_thy(thy_peak, fwhm_G_thy_init, fwhm_L_thy_init, policy, peak_shift_init, do_glb=True,
e=e, intensity=obs_static, eps=eps_static)
print(result_2)
[Model information]
model : thy
policy: shift
[Optimization Method]
global: basinhopping
leastsq: trf
[Optimization Status]
nfev: 2246
status: 0
global_opt msg: requested number of basinhopping iterations completed successfully
leastsq_opt msg: Both `ftol` and `xtol` termination conditions are satisfied.
[Optimization Results]
Data points: 51
Number of effective parameters: 6
Degree of Freedom: 45
Chi squared: 119985.2676
Reduced chi squared: 2666.3393
AIC (Akaike Information Criterion statistic): 407.9282
BIC (Bayesian Information Criterion statistic): 419.5192
[Parameters]
fwhm_G: 0.25000000 +/- 0.44683487 ( 178.73%)
fwhm_L: 0.60579241 +/- 0.20775859 ( 34.30%)
peak_shift 1: 862.59060102 +/- 0.24407807 ( 0.03%)
peak_shift 2: 862.98069401 +/- 0.11409659 ( 0.01%)
[Parameter Bound]
fwhm_G: 0.25 <= 0.25000000 <= 1
fwhm_L: 0.25 <= 0.60579241 <= 1
peak_shift 1: 862.59060102 <= 862.59060102 <= 863.40939898
peak_shift 2: 862.59060102 <= 862.98069401 <= 863.40939898
[Component Contribution]
Static spectrum
thy 1: 32.73%
thy 2: 67.27%
[Parameter Correlation]
Parameter Correlations > 0.1 are reported.
(fwhm_L, fwhm_G) = -0.885
(peak_shift 1, fwhm_G) = -0.35
(peak_shift 1, fwhm_L) = 0.491
(peak_shift 2, fwhm_G) = 0.436
(peak_shift 2, fwhm_L) = -0.543
(peak_shift 2, peak_shift 1) = -0.856

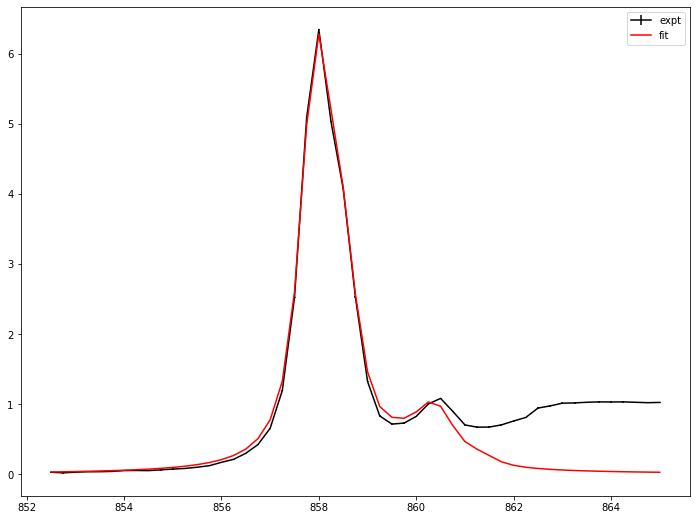

plt.errorbar(e, obs_static, eps_static, label=f'expt', color='black')
plt.errorbar(e, static_spectrum(e, result_2), label=f'fit', color='red')
plt.legend()
plt.show()

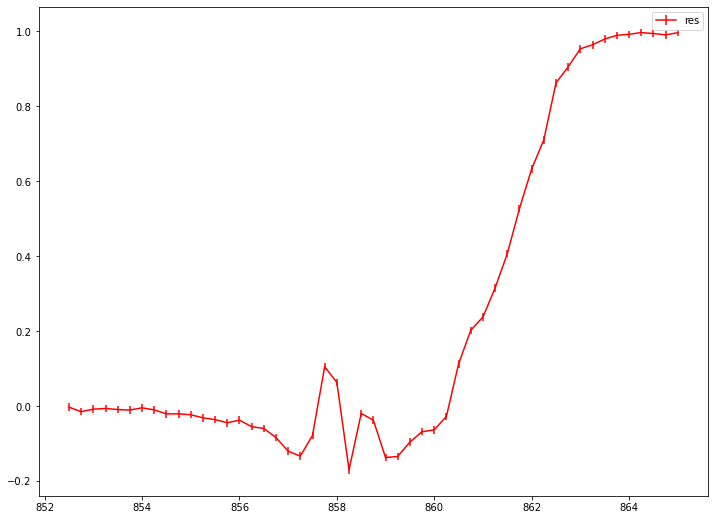

# plot residual
plt.errorbar(e, obs_static-static_spectrum(e, result_2), eps_static, label=f'res', color='red')
plt.legend()
plt.show()
Residual suggests that there exists gaussian edge feature near 862 with fwhm 2
# try with two theoretical component and edge
# refine initial guess
policy = 'shift'
peak_shift_init = np.array([862.6, 863])
# Note that each thoeretical spectrum shares full width at half maximum paramter
fwhm_G_thy_init = 0.25
fwhm_L_thy_init = 0.5
# add one edge feature
e0_edge_init = np.array([862])
fwhm_edge_init = np.array([2])
result_2_edge = fit_static_thy(thy_peak, fwhm_G_thy_init, fwhm_L_thy_init, policy, peak_shift_init,
edge='g', edge_pos_init=e0_edge_init, edge_fwhm_init=fwhm_edge_init, do_glb=True,
e=e, intensity=obs_static, eps=eps_static)
# print fitting result
print(result_2_edge)
[Model information]
model : thy
policy: shift
edge: g
[Optimization Method]
global: basinhopping
leastsq: trf
[Optimization Status]
nfev: 3767
status: 0
global_opt msg: requested number of basinhopping iterations completed successfully
leastsq_opt msg: `xtol` termination condition is satisfied.
[Optimization Results]
Data points: 51
Number of effective parameters: 9
Degree of Freedom: 42
Chi squared: 110.5689
Reduced chi squared: 2.6326
AIC (Akaike Information Criterion statistic): 57.4645
BIC (Bayesian Information Criterion statistic): 74.8509
[Parameters]
fwhm_G: 0.30072514 +/- 0.00955020 ( 3.18%)
fwhm_L: 0.50194070 +/- 0.00710896 ( 1.42%)
peak_shift 1: 862.49916688 +/- 0.00784966 ( 0.00%)
peak_shift 2: 862.99880820 +/- 0.00335302 ( 0.00%)
E0_g 1: 861.58985863 +/- 0.01883188 ( 0.00%)
fwhm_(g, edge 1): 2.27083148 +/- 0.06169109 ( 2.72%)
[Parameter Bound]
fwhm_G: 0.125 <= 0.30072514 <= 0.5
fwhm_L: 0.25 <= 0.50194070 <= 1
peak_shift 1: 862.29557969 <= 862.49916688 <= 862.90442031
peak_shift 2: 862.69557969 <= 862.99880820 <= 863.30442031
E0_g 1: 858 <= 861.58985863 <= 866
fwhm_(g, edge 1): 1 <= 2.27083148 <= 4
[Component Contribution]
Static spectrum
thy 1: 14.25%
thy 2: 35.45%
g type edge 1: 50.30%
[Parameter Correlation]
Parameter Correlations > 0.1 are reported.
(fwhm_L, fwhm_G) = -0.838
(peak_shift 1, fwhm_G) = -0.287
(peak_shift 1, fwhm_L) = 0.599
(peak_shift 2, fwhm_G) = 0.371
(peak_shift 2, fwhm_L) = -0.609
(peak_shift 2, peak_shift 1) = -0.66
(E0_g 1, fwhm_G) = -0.144
(E0_g 1, fwhm_L) = 0.193
(E0_g 1, peak_shift 1) = 0.137
(fwhm_(g, edge 1), fwhm_G) = 0.109
(fwhm_(g, edge 1), fwhm_L) = -0.171
(fwhm_(g, edge 1), peak_shift 1) = -0.184
(fwhm_(g, edge 1), E0_g 1) = 0.206

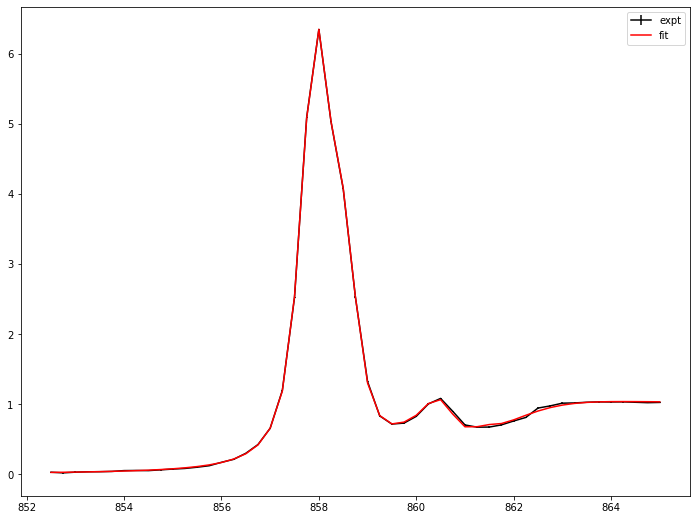

# plot fitting result and experimental data
plt.errorbar(e, obs_static, eps_static, label=f'expt', color='black')
plt.errorbar(e, static_spectrum(e, result_2_edge), label=f'fit', color='red')
plt.legend()
plt.show()

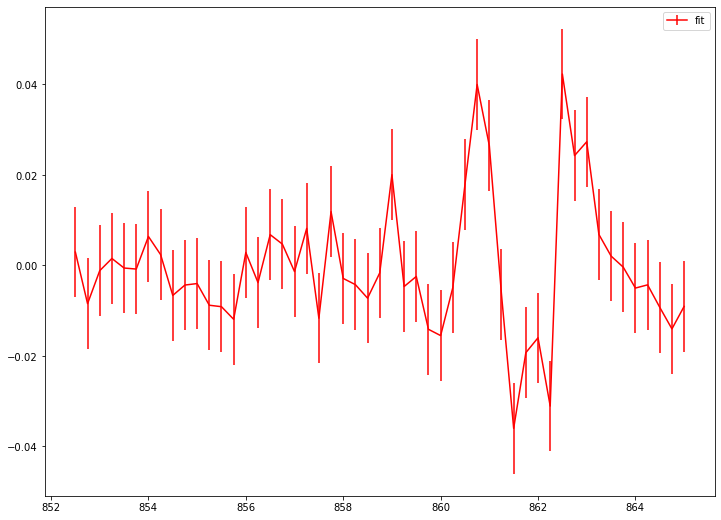

# plot residual
plt.errorbar(e, obs_static-static_spectrum(e, result_2_edge), eps_static, label=f'fit', color='red')
plt.legend()
plt.show()
fit_static_thy supports adding multiple edge feature, to demenstrate this I add one more edge feature in the fitting model.
# add one more edge
# refine initial guess
policy = 'shift'
peak_shift_init = np.array([862.6, 863])
# Note that each thoeretical spectrum shares full width at half maximum paramter
fwhm_G_thy_init = 0.25
fwhm_L_thy_init = 0.5
# add one edge feature
e0_edge_init = np.array([860.5, 862])
fwhm_edge_init = np.array([0.8, 1.5])
result_2_edge_2 = fit_static_thy(thy_peak, fwhm_G_thy_init, fwhm_L_thy_init, policy, peak_shift_init,
edge='g', edge_pos_init=e0_edge_init, edge_fwhm_init=fwhm_edge_init, do_glb=True,
e=e, intensity=obs_static, eps=eps_static)
print(result_2_edge_2)
[Model information]
model : thy
policy: shift
edge: g
[Optimization Method]
global: basinhopping
leastsq: trf
[Optimization Status]
nfev: 8320
status: 0
global_opt msg: requested number of basinhopping iterations completed successfully
leastsq_opt msg: `xtol` termination condition is satisfied.
[Optimization Results]
Data points: 51
Number of effective parameters: 12
Degree of Freedom: 39
Chi squared: 34.0751
Reduced chi squared: 0.8737
AIC (Akaike Information Criterion statistic): 3.4338
BIC (Bayesian Information Criterion statistic): 26.6158
[Parameters]
fwhm_G: 0.29705630 +/- 0.00561125 ( 1.89%)
fwhm_L: 0.50587743 +/- 0.00416873 ( 0.82%)
peak_shift 1: 862.50271730 +/- 0.00468196 ( 0.00%)
peak_shift 2: 862.99964539 +/- 0.00195884 ( 0.00%)
E0_g 1: 861.95968431 +/- 0.04259326 ( 0.00%)
E0_g 2: 860.47220697 +/- 0.05153850 ( 0.01%)
fwhm_(g, edge 1): 1.50379841 +/- 0.08769146 ( 5.83%)
fwhm_(g, edge 2): 0.82825820 +/- 0.12320940 ( 14.88%)
[Parameter Bound]
fwhm_G: 0.125 <= 0.29705630 <= 0.5
fwhm_L: 0.25 <= 0.50587743 <= 1
peak_shift 1: 862.29557969 <= 862.50271730 <= 862.90442031
peak_shift 2: 862.69557969 <= 862.99964539 <= 863.30442031
E0_g 1: 858.9 <= 861.95968431 <= 862.1
E0_g 2: 859 <= 860.47220697 <= 865
fwhm_(g, edge 1): 0.4 <= 1.50379841 <= 1.6
fwhm_(g, edge 2): 0.75 <= 0.82825820 <= 3
[Component Contribution]
Static spectrum
thy 1: 14.79%
thy 2: 35.30%
g type edge 1: 36.63%
g type edge 2: 13.28%
[Parameter Correlation]
Parameter Correlations > 0.1 are reported.
(fwhm_L, fwhm_G) = -0.84
(peak_shift 1, fwhm_G) = -0.313
(peak_shift 1, fwhm_L) = 0.624
(peak_shift 2, fwhm_G) = 0.388
(peak_shift 2, fwhm_L) = -0.624
(peak_shift 2, peak_shift 1) = -0.665
(E0_g 1, peak_shift 1) = -0.142
(E0_g 2, E0_g 1) = 0.866
(fwhm_(g, edge 1), peak_shift 1) = 0.114
(fwhm_(g, edge 1), E0_g 1) = -0.853
(fwhm_(g, edge 1), E0_g 2) = -0.757
(fwhm_(g, edge 2), fwhm_G) = 0.126
(fwhm_(g, edge 2), fwhm_L) = -0.226
(fwhm_(g, edge 2), peak_shift 1) = -0.307
(fwhm_(g, edge 2), E0_g 1) = 0.731
(fwhm_(g, edge 2), E0_g 2) = 0.7
(fwhm_(g, edge 2), fwhm_(g, edge 1)) = -0.602

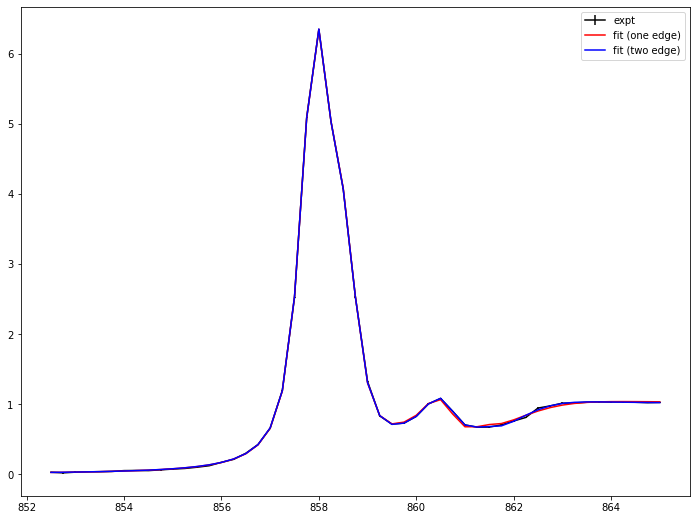

plt.errorbar(e, obs_static, eps_static, label=f'expt', color='black')
plt.errorbar(e, static_spectrum(e, result_2_edge), label=f'fit (one edge)', color='red')
plt.errorbar(e, static_spectrum(e, result_2_edge_2), label=f'fit (two edge)', color='blue')
plt.legend()
plt.show()
# save and load fitting result
from TRXASprefitpack import save_StaticResult, load_StaticResult
save_StaticResult(result_2_edge_2, 'static_example_thy') # save fitting result to static_example_thy.h5
loaded_result = load_StaticResult('static_example_thy') # load fitting result from static_example_thy.h5
# plot static spectrum
plt.plot(e, static_spectrum(e, loaded_result), label='static', color='black')
plt.plot(e, static_spectrum(e-1, loaded_result), label='static (1 eV shift)', color='blue')
plt.plot(e, static_spectrum(e+1, loaded_result), label='static (-1 eV shift)', color='red')
plt.legend()
plt.show()

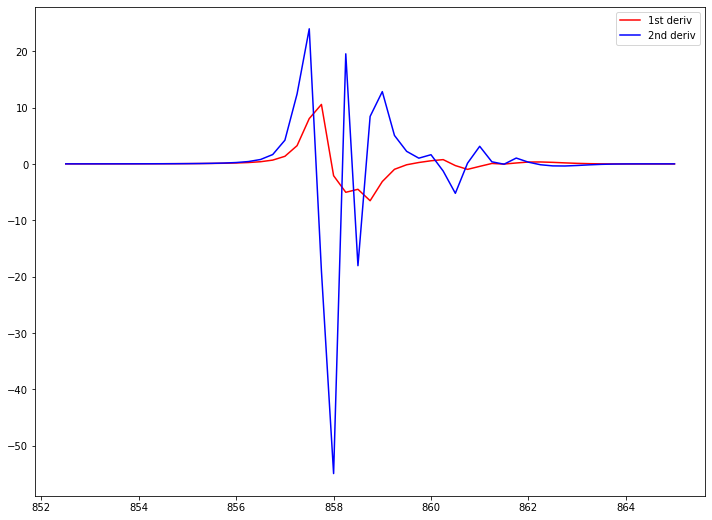

# plot its derivative up to second
plt.plot(e, static_spectrum(e, loaded_result, deriv_order=1), label='1st deriv', color='red')
plt.plot(e, static_spectrum(e, loaded_result, deriv_order=2), label='2nd deriv', color='blue')
plt.legend()
plt.show()
Optionally, you can calculated F-test based confidence interval
from TRXASprefitpack import confidence_interval
ci_result = confidence_interval(loaded_result, 0.05) # set significant level: 0.05 -> 95% confidence level
print(ci_result) # report confidence interval
[Report for Confidence Interval]
Method: f
Significance level: 5.000000e-02
[Confidence interval]
0.2970563 - 0.01151555 <= b'fwhm_G' <= 0.2970563 + 0.01122604
0.50587743 - 0.00845537 <= b'fwhm_L' <= 0.50587743 + 0.00838732
862.5027173 - 0.00931266 <= b'peak_shift 1' <= 862.5027173 + 0.00940234
862.99964539 - 0.00392627 <= b'peak_shift 2' <= 862.99964539 + 0.00396055
861.95968431 - 0.07132079 <= b'E0_g 1' <= 861.95968431 + 0.10665698
860.47220697 - 0.09237276 <= b'E0_g 2' <= 860.47220697 + 0.14202443
1.50379841 - 0.19350716 <= b'fwhm_(g, edge 1)' <= 1.50379841 + 0.17349489
0.8282582 - 0.23266591 <= b'fwhm_(g, edge 2)' <= 0.8282582 + 0.3153878
# compare with ase
from scipy.stats import norm
factor = norm.ppf(1-0.05/2)
print('[Confidence interval (from ASE)]')
for i in range(loaded_result['param_name'].size):
print(f"{loaded_result['x'][i] :.8f} - {factor*loaded_result['x_eps'][i] :.8f}",
f"<= {loaded_result['param_name'][i]} <=", f"{loaded_result['x'][i] :.8f} + {factor*loaded_result['x_eps'][i] :.8f}")
[Confidence interval (from ASE)]
0.29705630 - 0.01099785 <= b'fwhm_G' <= 0.29705630 + 0.01099785
0.50587743 - 0.00817056 <= b'fwhm_L' <= 0.50587743 + 0.00817056
862.50271730 - 0.00917647 <= b'peak_shift 1' <= 862.50271730 + 0.00917647
862.99964539 - 0.00383925 <= b'peak_shift 2' <= 862.99964539 + 0.00383925
861.95968431 - 0.08348127 <= b'E0_g 1' <= 861.95968431 + 0.08348127
860.47220697 - 0.10101361 <= b'E0_g 2' <= 860.47220697 + 0.10101361
1.50379841 - 0.17187210 <= b'fwhm_(g, edge 1)' <= 1.50379841 + 0.17187210
0.82825820 - 0.24148600 <= b'fwhm_(g, edge 2)' <= 0.82825820 + 0.24148600
In many case, ASE does not much different from more sophisticated f-test based error estimation.
