Convolution of damped oscillation and instrumental response function¶

Compare numerical implementation and analytic one
Determine irf depending detection limits for period of oscillation with S/N = 10

For pseudo voigt profile \({fwhm}({fwhm}_G, {fwhm}_L)\) and \(\eta({fwhm}_G, {fwhm}_L)\) is chosen according to J. Appl. Cryst. (2000). 33, 1311-1316

# import needed module
import numpy as np
from scipy.signal import convolve
import matplotlib.pyplot as plt
import TRXASprefitpack
from TRXASprefitpack import gau_irf, cauchy_irf, voigt
from TRXASprefitpack import calc_eta, calc_fwhm
from TRXASprefitpack import dmp_osc_conv_gau, dmp_osc_conv_cauchy, dmp_osc_conv_pvoigt
plt.rcParams["figure.figsize"] = (12,9)

# Define damped oscillation
def dmp_osc(t, k, T, phase):
    return np.heaviside(t, 1)*np.exp(-k*t)*np.cos(2*np.pi/T*t+phase)

Numerical implementation vs. Analytic implementation¶

for voigt instrumental response function, analytic implementation is based on pseudo voigt approximation

# Set damped oscillation paramter
tau = 1; period = 0.3; phase = np.pi/4
t = np.linspace(-5, 5, 3000)
t_sample = np.hstack((np.arange(-1, 1, 0.05), np.linspace(1, 5, 8)))
dmp_osc_num = dmp_osc(t, 1/tau, period, phase)

plt.plot(t, dmp_osc_num)
plt.show()

png

Gaussian IRF¶

# Set fwhm paramter for gaussian irf
fwhm_G = 0.15
gau_irf_num = gau_irf(t, fwhm_G)

plt.plot(t, gau_irf_num)
plt.show()

png

# Now calculates convolution

dmp_osc_conv_gau_num = convolve(gau_irf_num, dmp_osc_num, 'same')*(t[1]-t[0]) # Numerical
dmp_osc_conv_gau_anal = dmp_osc_conv_gau(t_sample, fwhm_G, 1/tau, period, phase) # analytic

%timeit convolve(gau_irf_num, dmp_osc_conv_gau_num, 'same')

206 µs ± 259 ns per loop (mean ± std. dev. of 7 runs, 1000 loops each)

%timeit dmp_osc_conv_gau(t_sample, fwhm_G, 1/tau, period, phase)

45.4 µs ± 191 ns per loop (mean ± std. dev. of 7 runs, 10000 loops each)

Trivally, calculation of analytic one takes much less time than numerical one.

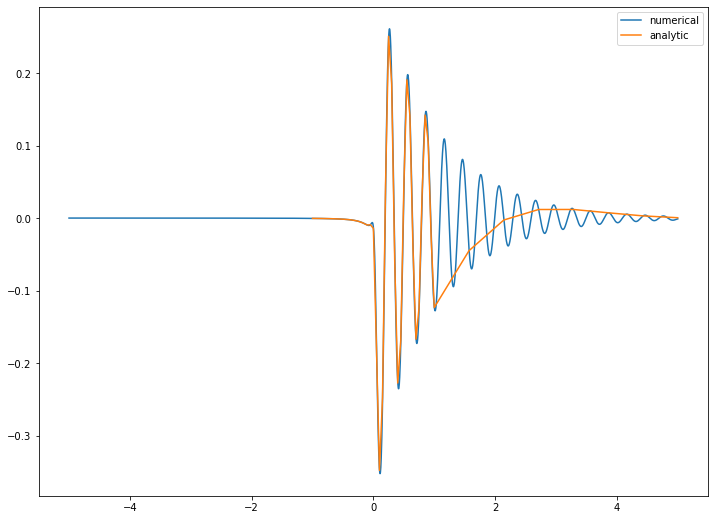

# Compare two implementation
plt.plot(t, dmp_osc_conv_gau_num, label='numerical')
plt.plot(t_sample, dmp_osc_conv_gau_anal, label='analytic')
plt.legend()
plt.show()

png

Cauchy IRF¶

# Set fwhm paramter for cauchy irf
fwhm_L = 0.10
cauchy_irf_num = cauchy_irf(t, fwhm_L)

plt.plot(t, cauchy_irf_num)
plt.show()

png

# Now calculates convolution

dmp_osc_conv_cauchy_num = convolve(cauchy_irf_num, dmp_osc_num, 'same')*(t[1]-t[0]) # Numerical
dmp_osc_conv_cauchy_anal = dmp_osc_conv_cauchy(t_sample, fwhm_L, 1/tau, period, phase) # analytic

%timeit convolve(cauchy_irf_num, dmp_osc_num, 'same')

223 µs ± 496 ns per loop (mean ± std. dev. of 7 runs, 1000 loops each)

%timeit dmp_osc_conv_cauchy(t_sample, fwhm_L, 1/tau, period, phase)

209 µs ± 406 ns per loop (mean ± std. dev. of 7 runs, 1000 loops each)

Analytic calculation of convolution of damped osciliation and cauchy instrumental response function needs more time than numerical one. And about four times slower than gaussian one.

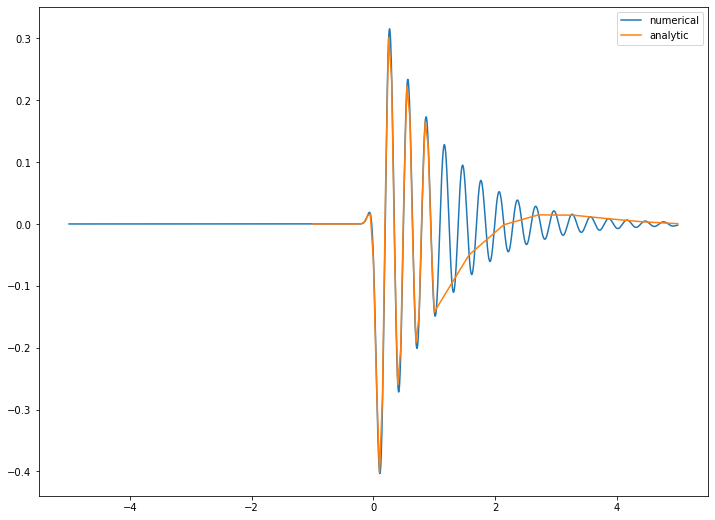

# Compare two implementation

plt.plot(t, dmp_osc_conv_cauchy_num, label='numerical')
plt.plot(t_sample, dmp_osc_conv_cauchy_anal, label='analytic')
plt.legend()
plt.show()

png

Voigt IRF¶

# Set fwhm paramter for voigt IRF
fwhm_G = 0.10; fwhm_L = 0.05
fwhm = calc_fwhm(fwhm_G, fwhm_L)
eta = calc_eta(fwhm_G, fwhm_L)
voigt_irf_num = voigt(t, fwhm_G, fwhm_L)

plt.plot(t, voigt_irf_num)
plt.show()

png

Voigt function is much complex than gaussian and cauchy function, so it takes much more time to compute.

%timeit gau_irf(t, fwhm_G)

40.8 µs ± 353 ns per loop (mean ± std. dev. of 7 runs, 10000 loops each)

%timeit cauchy_irf(t, fwhm_L)

6.85 µs ± 192 ns per loop (mean ± std. dev. of 7 runs, 100000 loops each)

%timeit voigt(t, fwhm_G, fwhm_L)

207 µs ± 2.15 µs per loop (mean ± std. dev. of 7 runs, 1000 loops each)

# Now calculates convolution

dmp_osc_conv_voigt_num = convolve(voigt_irf_num, dmp_osc_num, 'same')*(t[1]-t[0]) # Numerical
dmp_osc_conv_pvoigt_anal = dmp_osc_conv_pvoigt(t_sample, fwhm, eta, 1/tau, period, phase) # analytic

%timeit dmp_osc_conv_pvoigt(t_sample, fwhm, eta, 1/tau, period, phase)

271 µs ± 11.6 µs per loop (mean ± std. dev. of 7 runs, 1000 loops each)

As one can expected, the computation time for exp_conv_pvoigt is just sum of computation time for exp_conv_gau and exp_conv_cauchy.

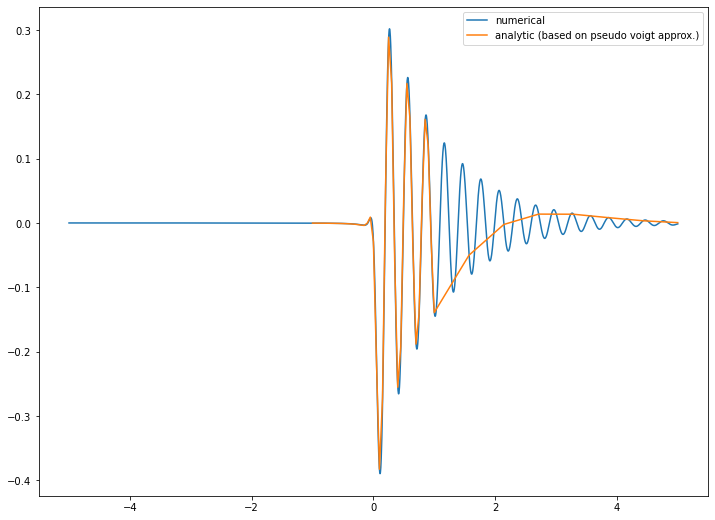

# Compare two implementation

plt.plot(t, dmp_osc_conv_voigt_num, label='numerical')
plt.plot(t_sample, dmp_osc_conv_pvoigt_anal, label='analytic (based on pseudo voigt approx.)')
plt.legend()
plt.show()

png

Analytic implementation well approximates convolution of exponential decay function and voigt instrumental response function.

plt.plot(t_sample, dmp_osc_conv_gau_anal, label='gaussian irf')
plt.plot(t_sample, dmp_osc_conv_cauchy_anal, label='cauchy irf')
plt.plot(t_sample, dmp_osc_conv_pvoigt_anal, label='voigt irf')
plt.legend()
plt.xlim(-0.5, 1)
plt.show()

png

Determine instrumental response function depending detection limits for osciilation period¶

Use gaussian instrumental response function

fwhm = 0.15; tau = 1
period = [fwhm/20, fwhm/10, fwhm/5, fwhm/2, fwhm, 2*fwhm, 5*fwhm, 10*fwhm, 20*fwhm]
t_sample = np.linspace(-1, 1, 2001)
noise = np.random.normal(0, 1/10, t_sample.size) # define noise
model = np.empty((t_sample.size, 9))

# compute model
for i in range(9):
    model[:, i] = dmp_osc_conv_gau(t_sample, fwhm, 1/tau, period[i], phase)

# plot model
for i in range(9):
    plt.plot(t_sample, model[:, i], label=f'period: {period[i]}, tau: {tau}, fwhm: {fwhm}')
plt.legend()
plt.show()

png

Due to the broadening feature of gaussian instrumental response function, we cannot detect exponential decay feature with lifetime less than full width at half maximum of irf function.
